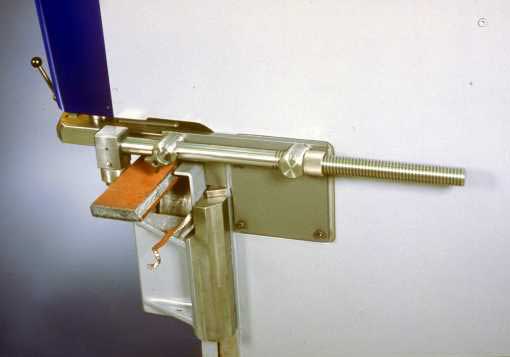

|  | Guide for beveling narrow steel strips
When narrow steel strips and flat bars, or similar material is to be beveled, there is sometimes a tendency for the width of the bevel to increase towards the end. A guide can be provided for use with the X-97 on workpieces with parallel edges. |
| | | | | | | |

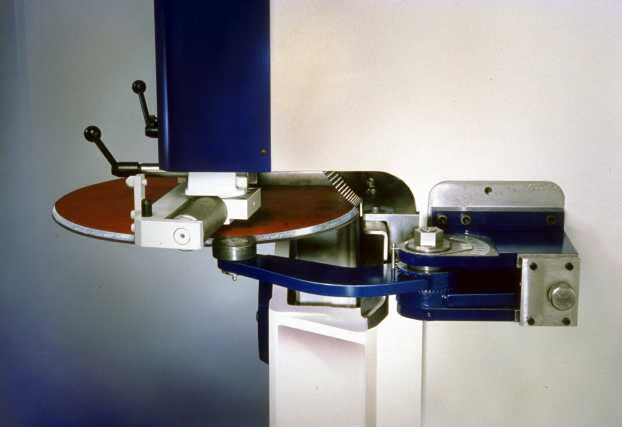

| Beveling circular discs
When fitted with a circular control device the machine can be used for external beveling of circular workpieces, with diameters down to 450 mm. The device consists of a guide roller and adjuster. Settings are made on a graduated

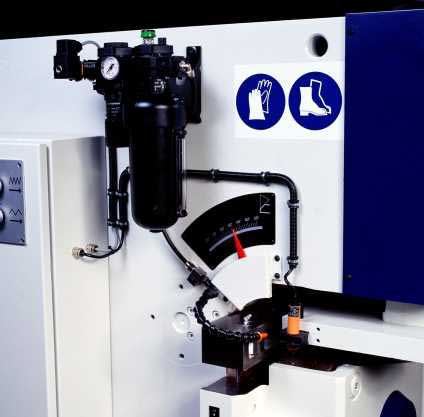

scale. | | | | | | | | Spray Lubrication
Lubrication of the beveling area prolongs the life of the cutting wheel. X-machines has therefore developed a spray lubrication unit that can be fitted on X-97 beveling machines. The lubrication is automatic and is only active when there is material in the machine. |

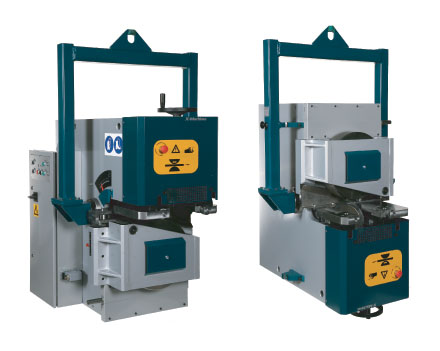

| | | | | | | |  | The X-97 machine adapts itself to the workpiece
The position of the machine can be adjusted to suit the shape, size and weight of the workpiece. It can stand in a stationary position, or it can be suspended for movement either in ordinary position or upside-down. If the machine is suspended, it can be made to move itself along the workpiece, instead of feeding the workpiece through the machine. | | | | | |
|
X97 Beveling Machine
